Aluminum alloy injection die casting machine
Main Features of 180Ton Copper & Aluminum & Lead die casting machine
1. 180T cold chamber die casting machine
2. Suitable for aluminum, brass and higher melting point metal
3. The die casting machine structure adopts 3-pull rod or C-shaped bracket plus hydraulic elevator device and satisfies requirements for moulds.
4. The elaborately designed shot system adopts independent high grade plunger 2-speed and pressure charging energy accumulator, and can provide highly efficient pressure charging in 2-speed shot speed and high response.
5. The injection machine is equipped with large diameter logic valves and precise flow control valves, improving injection machine response, decreasing oil pressure vibration and providing precise 4-stage shot adjustment.
6. Advanced double-loop and 4-step hydraulic injecting system
Specification of J1118K aluminum die casting machine
The installation drawing of 180T cold chamber aluminum machine

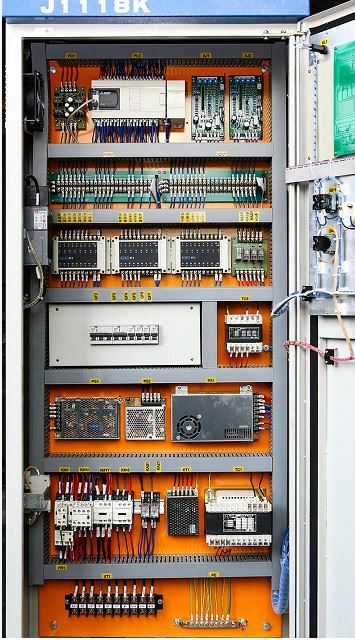

Details of 180T die casting machine for aluminum production line
About us
1. With a history of over 40 years
2. Factory Area: 40,000 square meters
3. Employees: 50-100 people
4. Production Capacity: 300-500 sets per year
5. Company owned Tech & Research center
FAQ:
Q: Is it possible to make zinc parts in cold chamber die casting machine?
A: Yes, the cold chamber die casting machine can make all material, including zinc, but hot chamber die casting machine can only make low heating point material, like zinc and lead. Compared with hot chamber die casting machine, the cold chamber machine is of lower production speed.
Q: What is the difference for nitrogen bottle of cold & hot chamber die casting machine?
A: The nitrogen bottle of cold chamber die casting machine is piston, and the accumulator of hot chamber die casting machine is nitrogen bag made of rubber.
Q: What is the difference for hydraulic pump of cold & hot chamber die casting machine?
A: The hydraulic pump of cold chamber die casting machine is high and low (double press) pump. The mould opening and closing will be controlled by high and low pressure. The hydraulic pump of hot chamber die casting machine is single press pump. So the hot chamber die casting machine has two nitrogen bottles. One is for opening and closing moulds and the other is for injection system. When the speed of injection or mould opening increases,the nitrogen bottle (accumulator) will provide the press to boost speed.
Q: What things shall we prepare before using the die casting machine?
A: You should prepare the electric, water, air bag, hydraulic oil and the melting furnace etc,.
Q: How about your warranty and after-sales services?
A: We have one year warranty for machine. Our professional masters could overseas to help install and debug machine, also provide free training until you got the skill.
