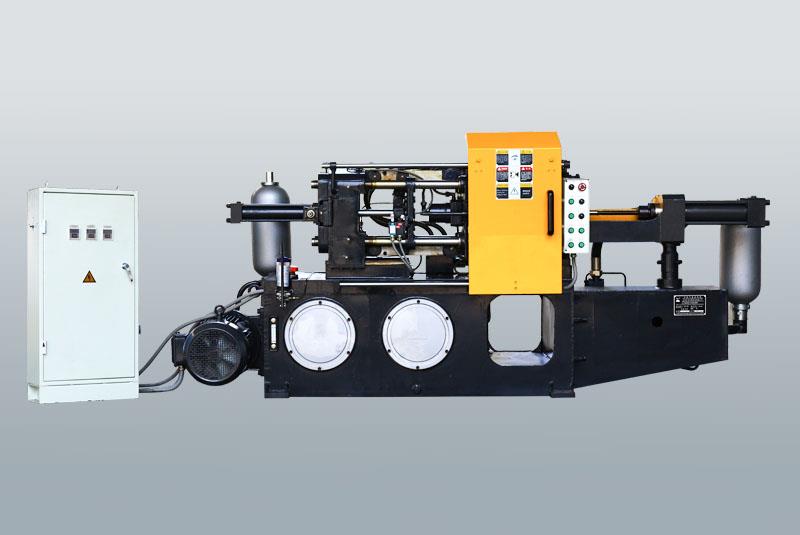

Basic information of J113B die casting machine
Tons: 25Ton
Type: cold chamber die casting machine
Suitable material: suitable for aluminium, brass etc,. having high melting point material
HS code: 8454301000
Weight: 2000kg

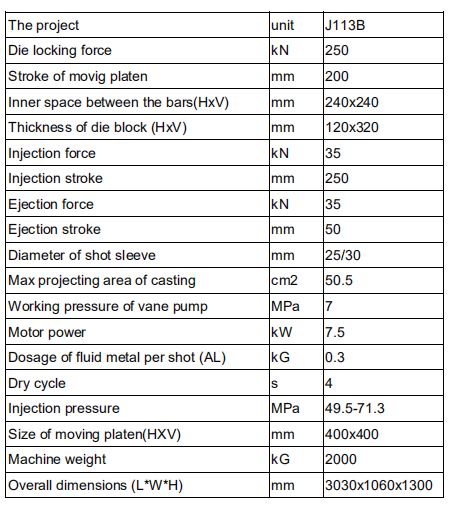

Specification
Model J113B horizontal cold chamber die-casting machine is one of series of products approved by ministry. It may be used for casting of nonferrous metal, as of Al. Zn. Cu.…, and its alloy. It applies widely in industrial making, as of household appliance, communication, meter, car, aviation making.
The press consists of case, die closing, injection, hydraulic circuit, electric circuit units. The machine uses electrical and hydraulic joint control. Operation may be manual or auto. In the condition of manual, every one of operations may be done individually. It is suitable for adjusting die moulding height. In the condition of auto, according to the pre-programming, one cycle of operation may be finished automatically, only after the buttons of “die closing” and “injection” get pressed. It is easy to operate, reliable and safe.
The die closing unit is a crank mechanism having advantages of energy saving, steady running, rigid lock, conforming with demand of die closing of press. Injection unit being made of two stages pressure built up unit, having good stability, control by hydraulic accumulator.

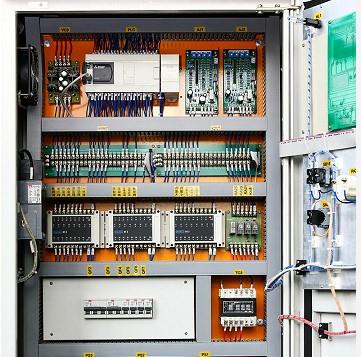

The electrical system of the machine is equipped with an emergency stop button and safety interlocking line between processes, to ensure that machine automatically completes the operation of process in accordance with the provisions of the program.
About us

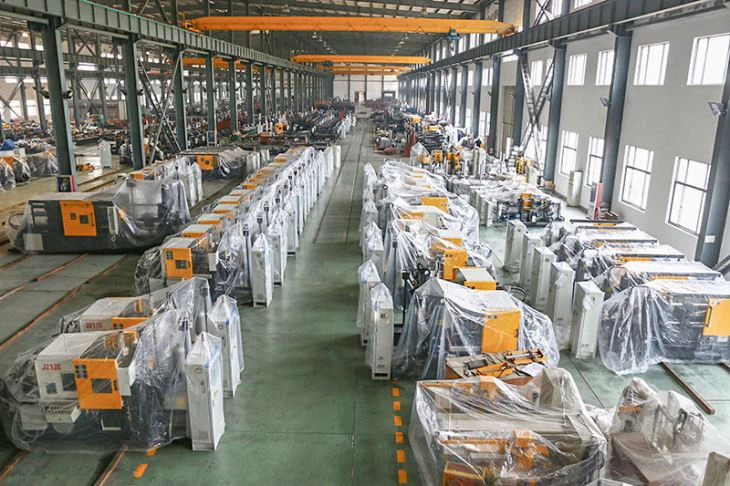

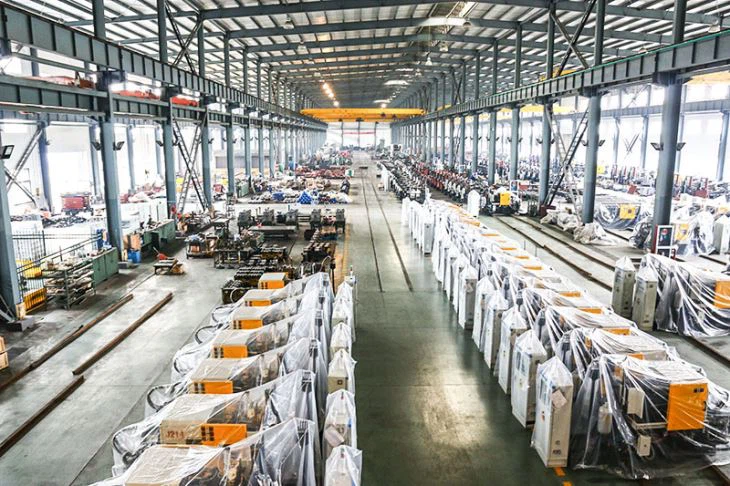

Since its foundation in1981, after 40 years's development and dedication, Ningbo Dongfang Die-Casting Machine Co.,Ltd has owned 40000 square meters production bases. Ningbo Dongfang Die-Casting Machine Co.,Ltd is a company specializing in manufacturing and exporting of hot and cold chamber die casting machines and after-sales services. And the main products include "J2" series of hot chamber die casting machines, "J1" cold chamber die casting machines, real-time control die casting machines, magnesium alloy die casting machines and peripheral equipments, such as Furnace, Auto Ladler, Extractor, Sprayer and so on.
FAQ:
Q: Are you the manufacturer or trading company?
A: We are the direct manufacturer and have our own Export rights.
Q: If we don't know how many tons machine will be suitable for our products, what we should do?
A: It’s no problem. You can send us weight, size and material of your products then our professional master will recommend the most suitable machine for you.
Q: What is your delivery time?
A: Generally, we can deliver the machine within 7-10 days after receiving your advance payment. But it also depends on the item and the quantity of your order.
Q: How about the payment terms?
A: 30% T/T deposit, and balance 70% T/T before delivering the goods.
Q: How about your warranty and after-sales services?
A: We have one year warranty for the machine. Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.
Q: What is the difference between aluminum and brass machine？
A: They are same machine, but different moulds and furnace. If you want machine driven by electric, we recommend general type of electric furnace for aluminum die casting machine and high frequency brass electric furnace for brass die casting machine. If you want machine driven by natural gas, then you only need to choose different moulds for aluminum or brass machine.
If you have any questions, pls contact us without hesitate.
