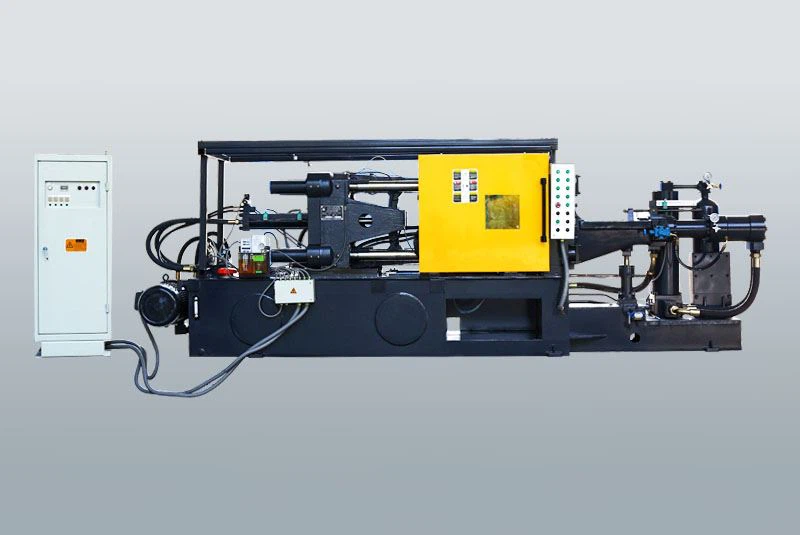

130T cold chamber aluminum injection die casting machine
Features and applications of J1113F 130T aluminum injection Machine
1. Suitable for aluminum,zinc and copper alloy
2. 4-rod pilot elastic framework for more faster and reliable
3. 3-step hydraulic boosting and injecting system for more effective
4. 4.The internationally-favorable PLC man-machine interface control system, casting product data storage and monitoring capabilities, timely alarm in case of abnormality, and elimination of large quantities of defective products.
5. Unique static and dynamic performance with dual core-pulling devices ensures one-time formation of precise, complicated products.
6. The injection system uses European draw-bar structure with a variety of choices for center and eccentric injection positions that provide easy adjustment, high precision, and applicability to various complex molds.

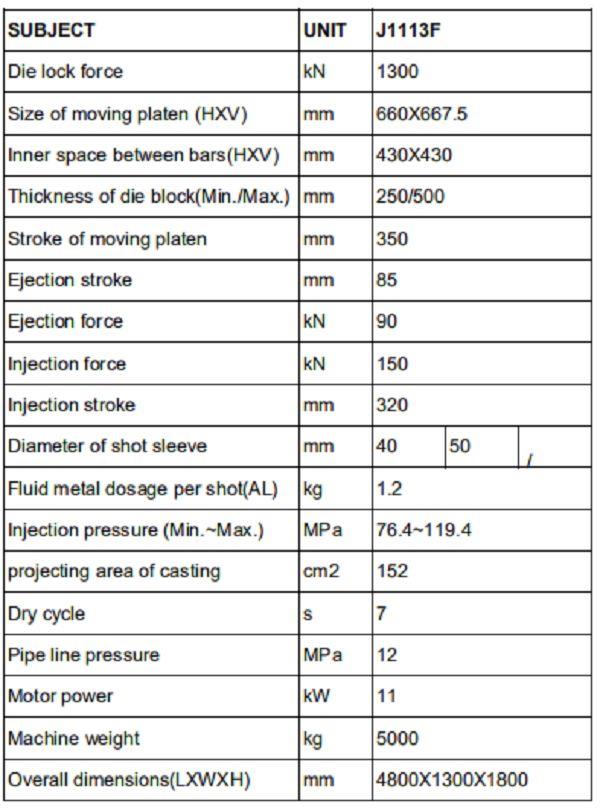

Specification of J1113F aluminum injection die casting machine
Details of 130Ton cold chamber injection aluminum machine

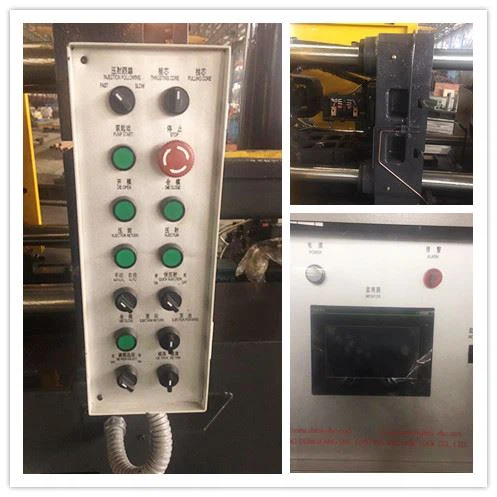

Electric operating system
The program controller is made by Japan Mitsubishi.

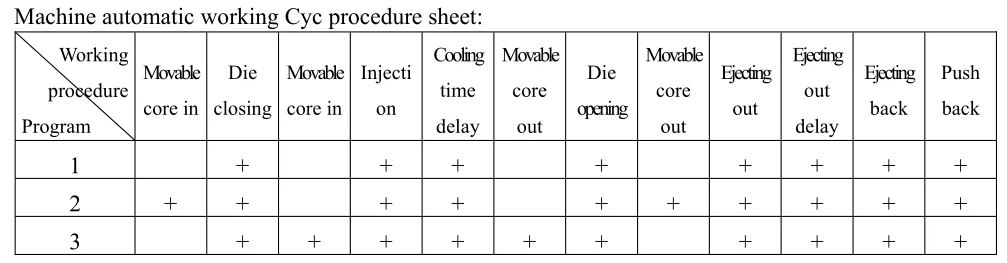

The whole machine is controlled by electric system. Choose automatic Cycle working procedure
normally; during debugging manual operation can be chosen.

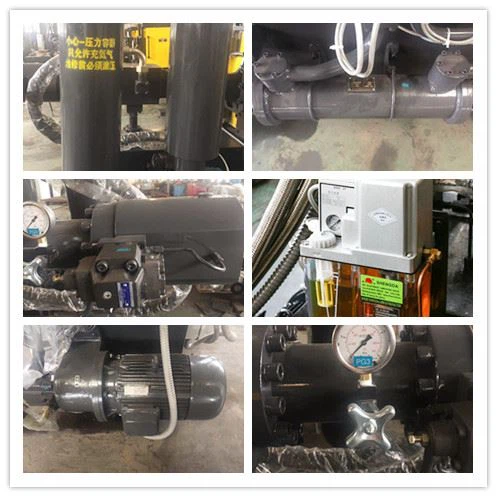

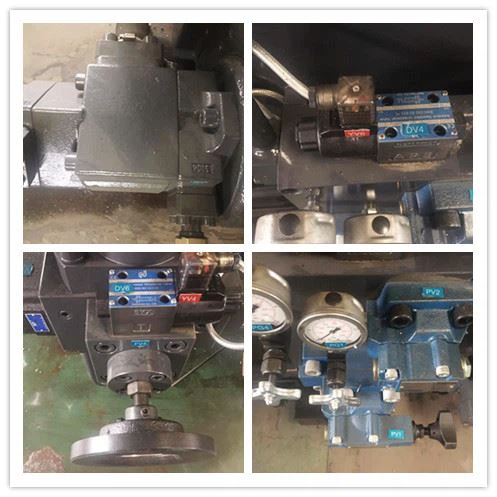

The hydraulic system
The hydraulic driving system of the machine is open type, which is formed by oil tank, oil filter, oil pump feeding system, driving cylinder (cylinders of die closing, injection, pressurizing, ejecting and dnockout core, etc.), all flow, pressure and direction control valves, accumulator, cooler and hydraulic pipeline, etc.
FAQ
Q1. Q:How's your after-sale service?
A:we can gave you one-year after sales warranty .Professional Engineers are available to service machinery overseas,for testing,training your technicians how to run the machines.
Q2. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. What is your sample policy?
A: We don't supply the sample .
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
